Modbus→BACnet
Modbus to BACnet
Publish meters, controllers and field values as BACnet objects for a BMS.
Connect devices across different protocols
Purpose-built gateways for protocol conversion, routing and point mapping in industrial and building automation. Configure both communication sides directly through a built-in web interface.
Browser-based setupPoint-level mappingLive diagnostics
Protocol Gateway
Source side
Source ProtocolSource Communication→
→
Target side
Target ProtocolTarget Protocol ServiceStart with the two protocols you need to connect.
Each gateway is designed around a clear source-to-target communication task, making product selection and commissioning straightforward.
Modbus RTU↔TCP
Serial to Ethernet
Connect serial Modbus devices to Ethernet-based SCADA, HMI or controllers.
Modbus→KNX
Modbus to KNX
Map HVAC, energy and control values to KNX group addresses.
BACnet MS/TP↔IP
BACnet Routing
Route BACnet traffic between MS/TP field networks and BACnet/IP.
Connect. Map. Convert.
A consistent commissioning workflow across the protocol gateway series.
Connect
Set serial ports, Ethernet parameters, device addresses, baud rates and protocol roles.
Example: COM1 · RS-485 · 9600 bps · Modbus Client
Map
Create a clear relationship between source registers, values or devices and target protocol objects.
40001 Holding Register → AI-1 BACnet Object
Convert
The gateway continuously polls, converts and serves data to the target network in real time.
Continuous conversion: source values are processed and published as target protocol objects

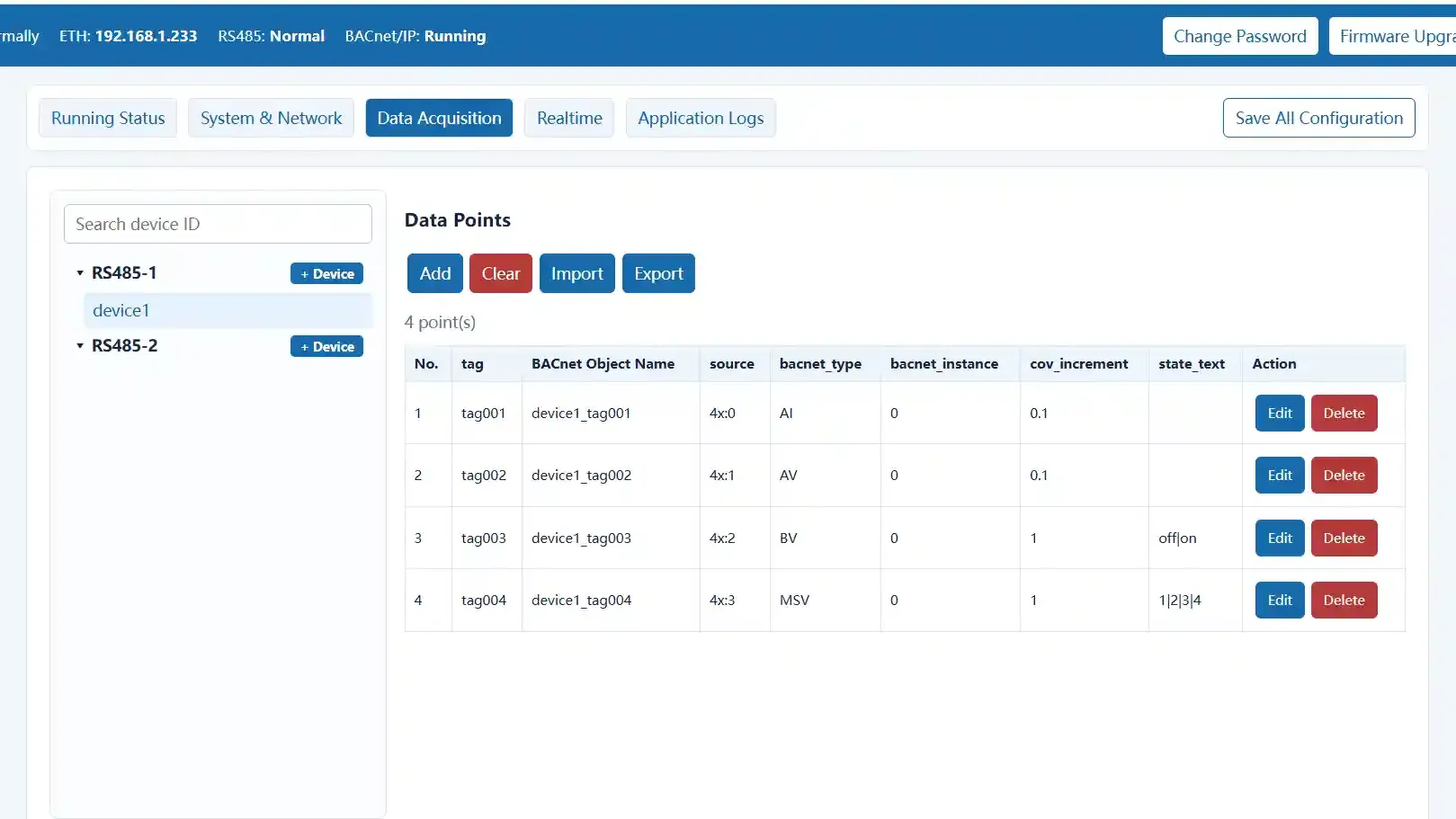

Configure everything in your browser.
Set up both sides of the conversion, build point mappings, verify live values and diagnose communication without installing additional engineering software.
Communication Setup
Configure serial, Ethernet and protocol parameters.
Point Mapping
Map source addresses to target protocol objects.
Live Verification
Check values and status before commissioning.
Diagnostics
Review timeout, exception and protocol logs.

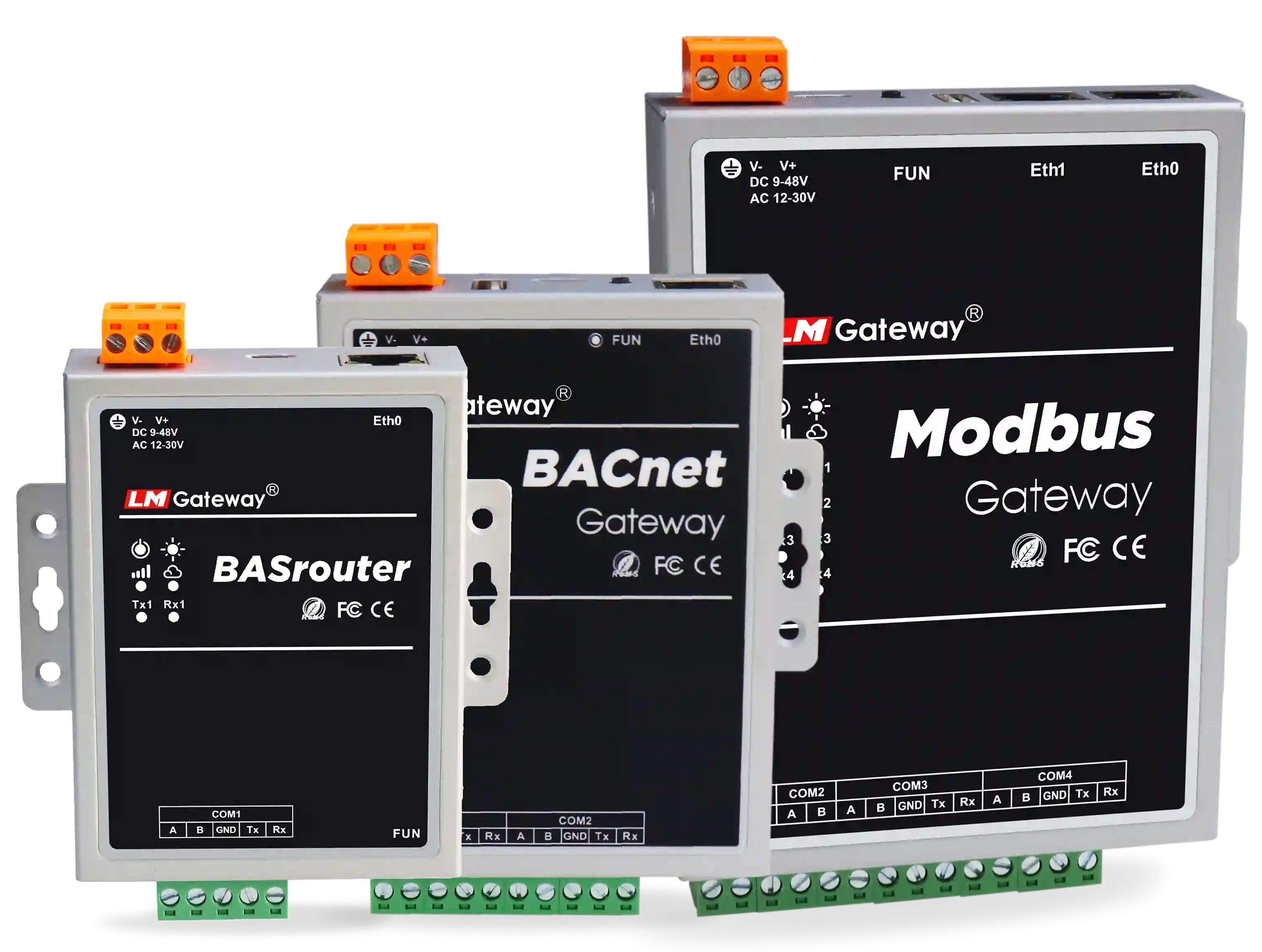

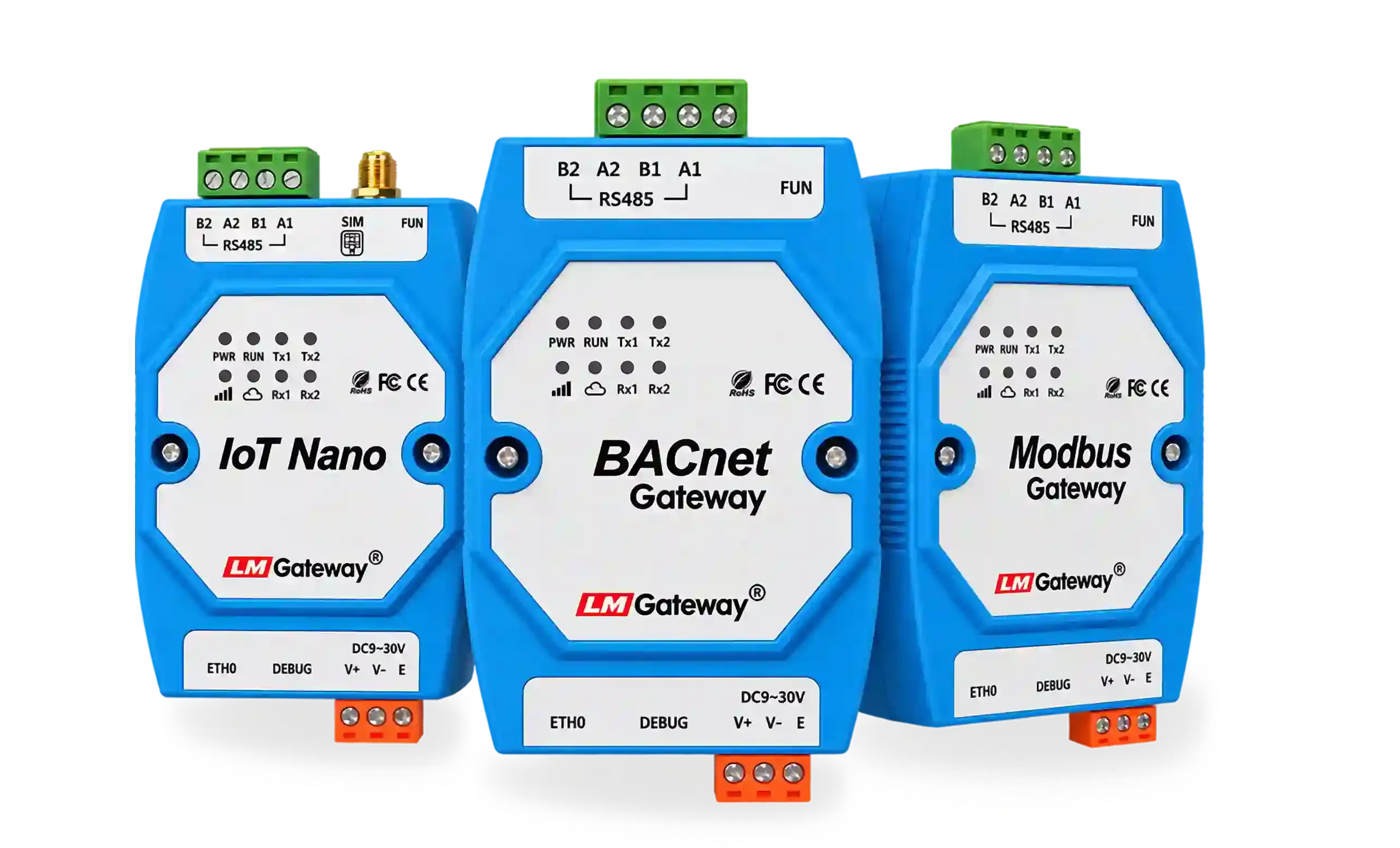

Conversion gateways and protocol routers.
Shared browser-based engineering, with protocol-specific functions for each connection task.
Convert between different protocol models.
Translate field addresses, values and data types into objects or group addresses used by the target system.
Modbus to BACnet Gateway
Connect Modbus RTU/TCP devices to BACnet/IP or BACnet MS/TP systems.
Modbus to KNX Gateway
Map Modbus registers and control values to KNX group addresses.
Bridge network media within one protocol ecosystem.
Connect serial and Ethernet segments while preserving the protocol's native communication model.
BACnet IP–MS/TP Router
BACnet RoutingRoute BACnet traffic between IP networks and MS/TP field controllers.
Modbus RTU/TCP Gateway
Modbus RoutingBridge Modbus serial devices with Modbus TCP clients and servers.
Built for real field work.
Tools for fast verification during commissioning and easier maintenance after delivery.
Live Data
View current values, quality and update timestamps from the browser.
Communication Status
See connected devices, response state and timeout counters.
Protocol Logs
Review exceptions, malformed responses and connection events.
Configuration Backup
Export, restore and replicate validated project configurations.
Find the right protocol gateway.
Choose the protocols on both sides, then confirm the required interfaces, device count and data point capacity.
→
Recommended ProductBACnet Gateway
Recommended ModelsBACnet Gateway
Maps Modbus RTU/TCP data to BACnet/IP or BACnet MS/TP objects.
ModelInterfacesCapacityDatasheet
