Multi-function routing
Support independent routing between BACnet IP and BACnet MS/TP network, providing a complete BACnet network interconnection solution.

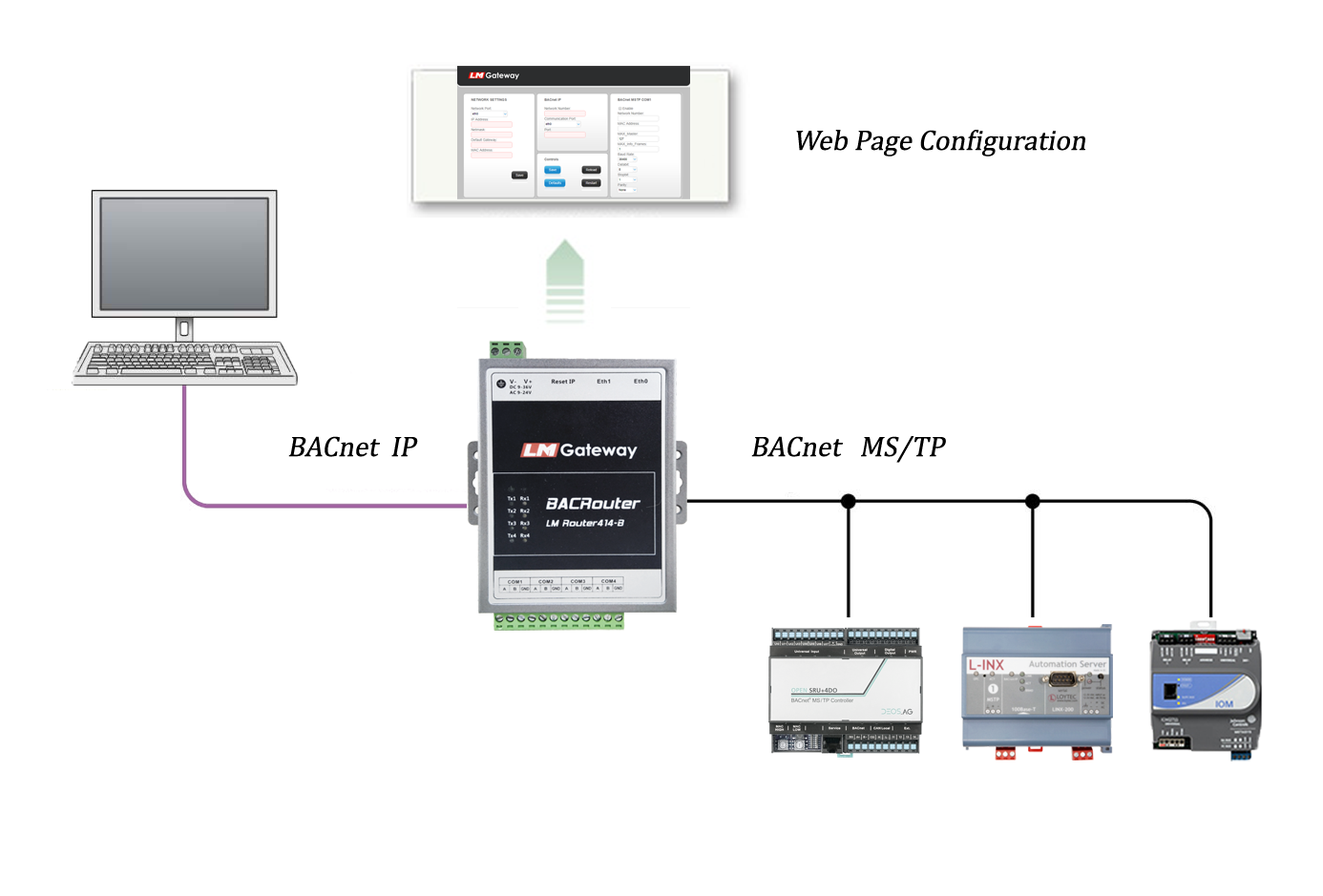

The BACnet multi-network router provides universal independent routing between BACnet/IP and BACnet MS/TP networks, enabling system integrators to mix BACnet network technology within a BACnet Internet. The BACnet router can be debugged and diagnosed and trouble-shooted using a standard web browser via the built-in web server.
Support independent routing between BACnet IP and BACnet MS/TP network, providing a complete BACnet network interconnection solution.
The built-in web server allows debugging and troubleshooting using a standard web browser;
communication diagnostics page;
10/100 Mbps Ethernet with adaptive and Auto-MDIX (automatic line-sequence crossover);
optically isolated MS/TP port;
MS/TP baud rate 9.6-76.8 kbps;
DC9V~36V, support anti-reverse connection, anti-thunder, over-current protection, etc.;
DIN rail card slot fixed installation.
Model | Hardware interface | Product manual | Help document |
LM Router414-B | RS485X4,Network portX2,Built-in 4G storage space | Download | Download |
The BACnet Router is part of our BACnet product line, which reduces costs in training, implementation, deployment and maintenance. Modularity, scalable packaging and low installation costs mean a low entry point for building control. Meet the needs of the industry, converge in a more popular direction, in line with BACnet / IP standards and widely used Ethernet network standards. There are now a wide variety of networks and protocol standards in use in the field of building automation and process control. Various network and protocol standards have been selected to meet building-specific control system requirements, power substations, water treatment plants, etc. But with the latest trends, in today's business environment, it is necessary to have all these different control systems. Different protocols are integrated into one central system, which can be a Building Management System (BMS), SCADA or HMI. ProtoBeamer products enable system integrators and control system designers to integrate various physical and data link layer standards (such as RS-485, wireless) and application layer protocol standards (such as Modbus, ZigBee, M-Bus, etc.) to the BACnet protocol. Become the de facto standard in the BMS / SCADA field. The BACnet router product can integrate the IO/Controller device of the call BACnet MS / TP protocol to the BMS / SCADA system based on BACnet / IP client. The router can connect to the BACnet MS / TP slave device as well as the master device. Routers route BACnet data and BACnet MS/TP network devices between BACnet/IP network devices. This facilitates fast and transparent communication link segments between BACnet devices on different physical/data links.
