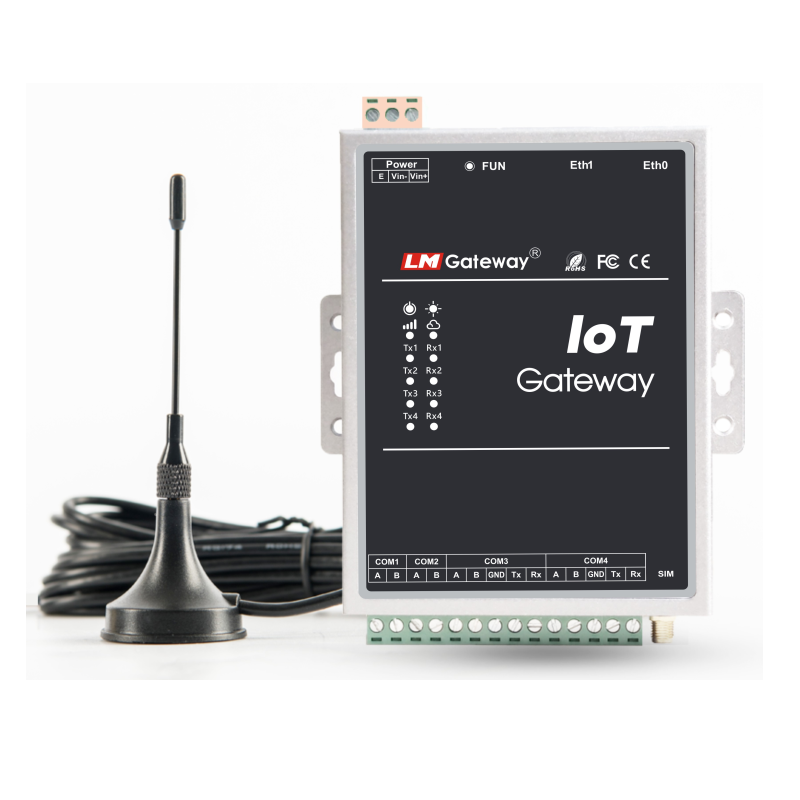

LM Gateway403-IoT
IoT Gateway
LM Gateway403-IoT data acquisition gateway, based on a solid hardware platform design, a complete software kernel. Provides 4 RS-485 serial ports and 2 10/100 Mbps Ethernet ports，and supports 4G modules.The gateway is embedded with Modbus, BACnet, DLT645 and other data acquisition drivers. It provides proprietary protocol driver integration. The gateway acts as Modbus RTU. The Modbus TCP server provides external data. The gateway and cloud platform use the instant messaging protocol MQTT to transmit data. The gateway data points are released through subscription. The mechanism is pushed to the cloud, and the cloud can read and write to the front-end device through the gateway.
Buy online
| CPU | 4 core A9, clocked at 1.4GHz |
| Memory | 512MB DDR3 High Performance Memory |
| Nand Flash | MLC eMMC is onboard 8GByte eMMC |

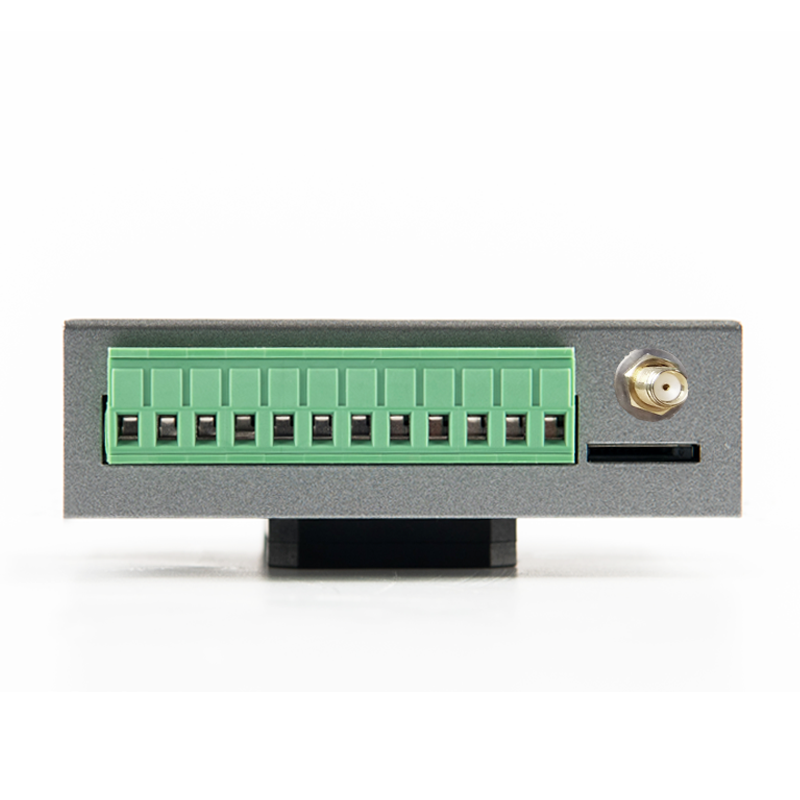

| Serial Port | 4 Fully Isolated RS-485 Interfaces |

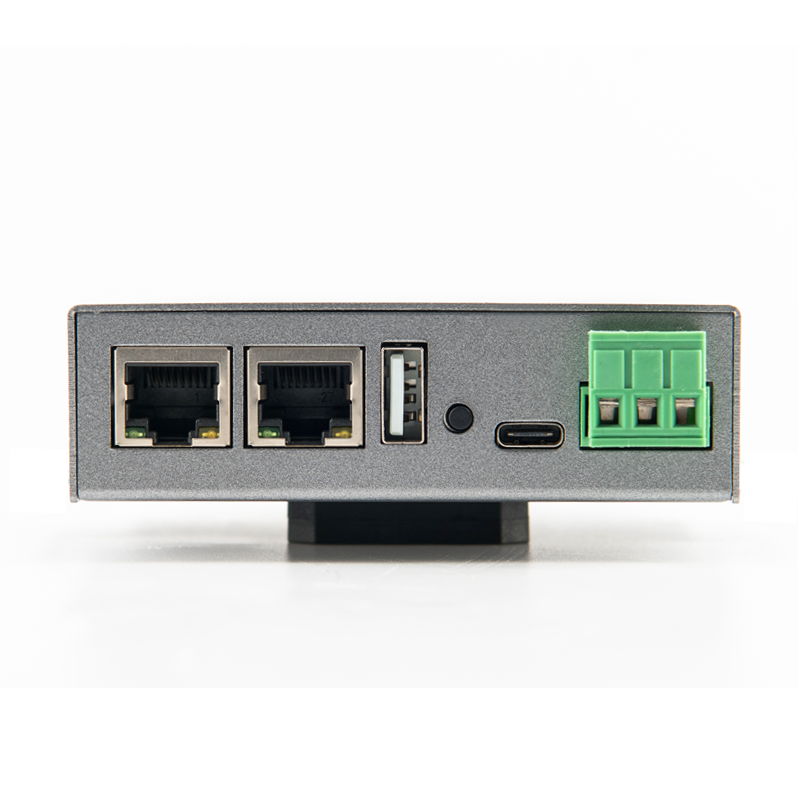

| Network Port | Two 100M/10M Ethernet Interfaces |
| 4G Module | Built-in 4G Full Netcom Module |
| Power | DC9V~36V, support anti-reverse, anti-thunder, over-current protection, etc. |
| Weight weight | 260g |
| Shell protection level | IP51 |
| Installation Dimensions | 129mm×116mm×29mm (L×W×H) with mounting ears |
| Mechanical Installation | DIN Rail Card Slots |
| Power Consumption | Maximum power consumption of the motherboard ≤6W |
| Working temperature | -40~85°C |
| Work Relative Humidity | 20~90% No Condensation |
| Instrumentation | Data acquisition driver | Serial port | Network port |
| Modbus protocol | Modbus RTU | Modbus TCP, Modbus RTU_over_TCP | |
| DLT645 protocol | DLT645-1997, DLT645-2007 | / | |
| CJ188 protocol | CJ188 | / | |
| Mbus | MBus_EnergyMeter, MBus_EN1434 | / | |
| PLC | Mitsubishi Agreement | Mitsubishi Fx3U | / |
| Mitsubishi Fx485 | / | ||
| Mitsubishi_QBinary | / | ||
| Siemens protocol | Siemens S7-200 PPI | Siemens S7-200 Network | |
| / | Siemens S7-300 Network | ||
| / | Siemens S7-400 Network | ||
| / | Siemens S7-1200 Network | ||
| / | Siemens S7-1500 Network | ||
| AB | / | AB NET | |
| OMRON Protocol | OMRON_HOSTLINK | OMRON_FINS | |
| Building communication | BACnet protocol | BACnet MS/TP | BACnet IP |
| Industrial control and automation interface standards | OPC protocol | / | OPC UA, OPC DA, OPC XML DA |
| Substation communication standard | IEC protocol | / | IEC104 |
| Non-standard protocol | Instrumentation | Yiling temperature controller | / |
| dlt645 JX Digital | / | ||
| dlt645-2007 extended protocol | / | ||
| Jiangsu Runyi Water Meter | / | ||
| HL-MODBUS protocol | / | ||
| CJ/T133-2012 IC card water meter | / | ||
| DLT645-Fee Control | / | ||
| CJ/T133-2012 MBus IC card water meter | / | ||
| ModbusRTU_TancyA1 | / | ||
| Allen_Bradley_DF1 | / | ||
| modbus Shendong 43 | / | ||
| CJ188贵翔 | / | ||
| Beijing Mingcheng Zhonghui Sunshade Curtain | / | ||
| SGA400 | / | ||
| DEET-BUS | / | ||
| Internet interface | Internet collection | / | mqtt client subscription |
| / | Gold map weather forecast | ||
| / | Zhejiang Dahua HTTP | ||
| / | HTTP collection | ||
| / | Air Quality |
-

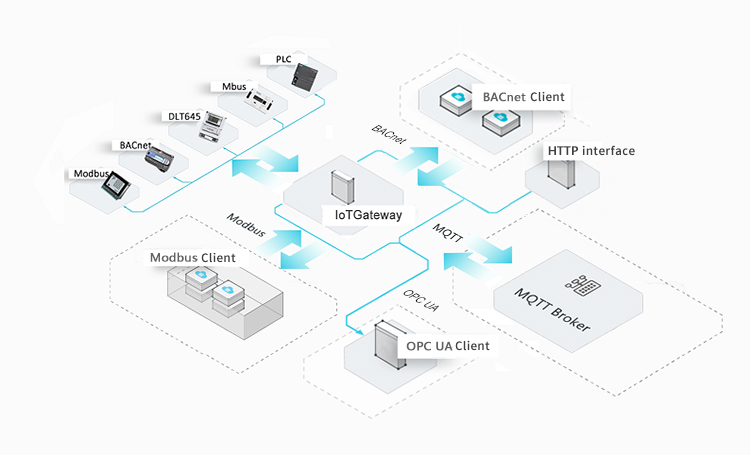

Gateway acts as Modbus RTU, Modbus TCP server provides external data
Support 0x, 1x, 3x, 4x, 4 functional areas
Supports int16, int32, float32 and various data types
The gateway provides an http server, which supports two common methods of GET and POST. Users can retrieve the real-time data and stored historical data of the gateway through the http server interface.
The gateway can serve as an MQTT client, connecting Alink (Alibaba Cloud), Baidu Cloud, Tencent Cloud, Tlink and other private clouds.
Push the data points of the gateway to the cloud through a subscription and publishing mechanism. The gateway reads and writes the front-end equipment.Romi Measurement & Control launched the IoT data center, which is convenient for users to verify IoT applications such as gateways, cloud services, and WeChat public accounts.
LM Gateway403-IoT Data Sheet
