IEC104 Service

IEC104 serviceConfiguration​

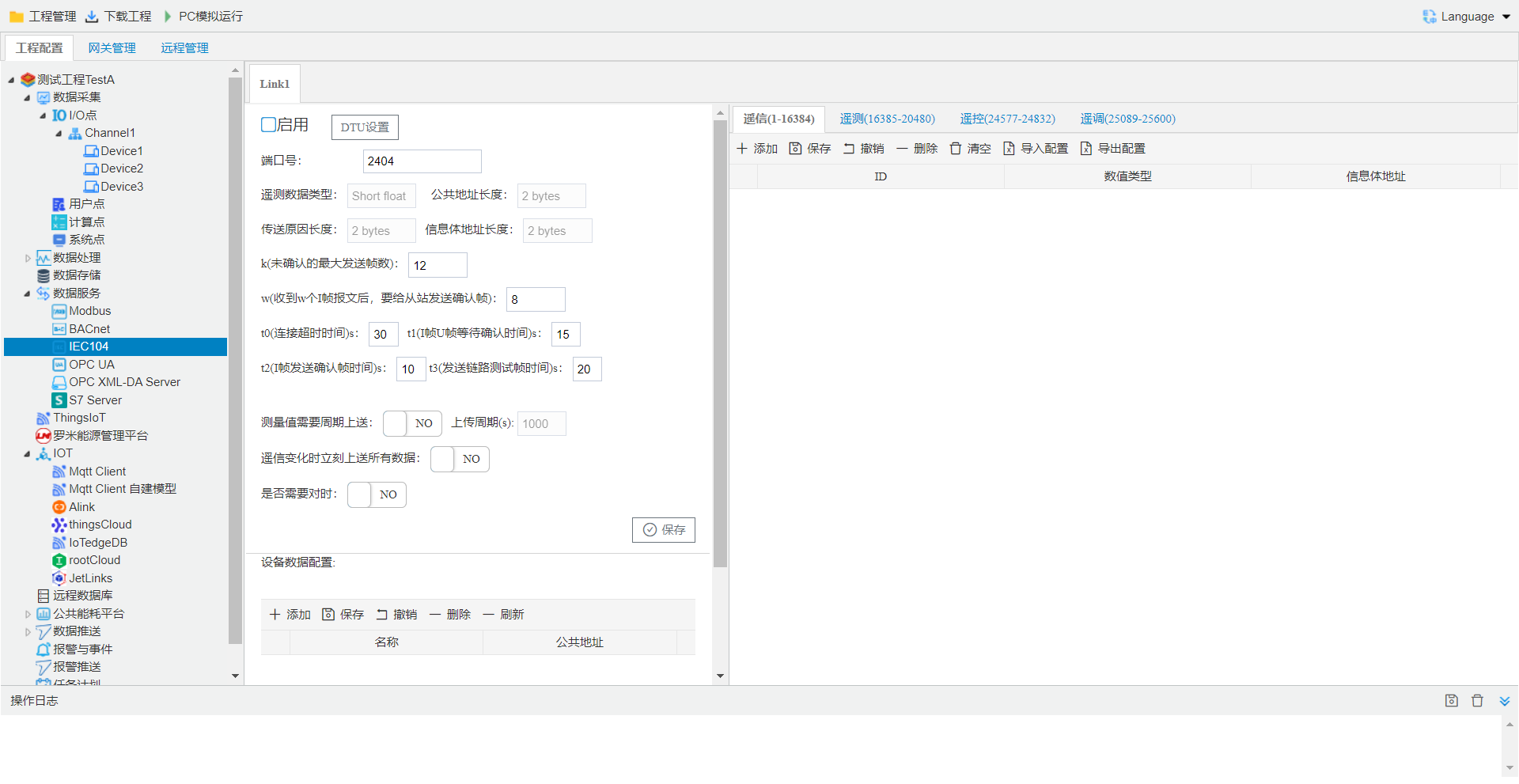

IEC 104 serviceimplementTag pointIEC 104 , allowssupports IEC 104 Clientthrough IEC 104 protocolread/write Tag point. Port number: IEC 104 service Port number, cancustom, is 2404. Parameter Configurationas shown below, Configuration Completedafterpoint"save"button.

Figure 1 IEC 104 service

Configurationdeviceandaddpoint​

Add deviceConfiguration, as shown below:

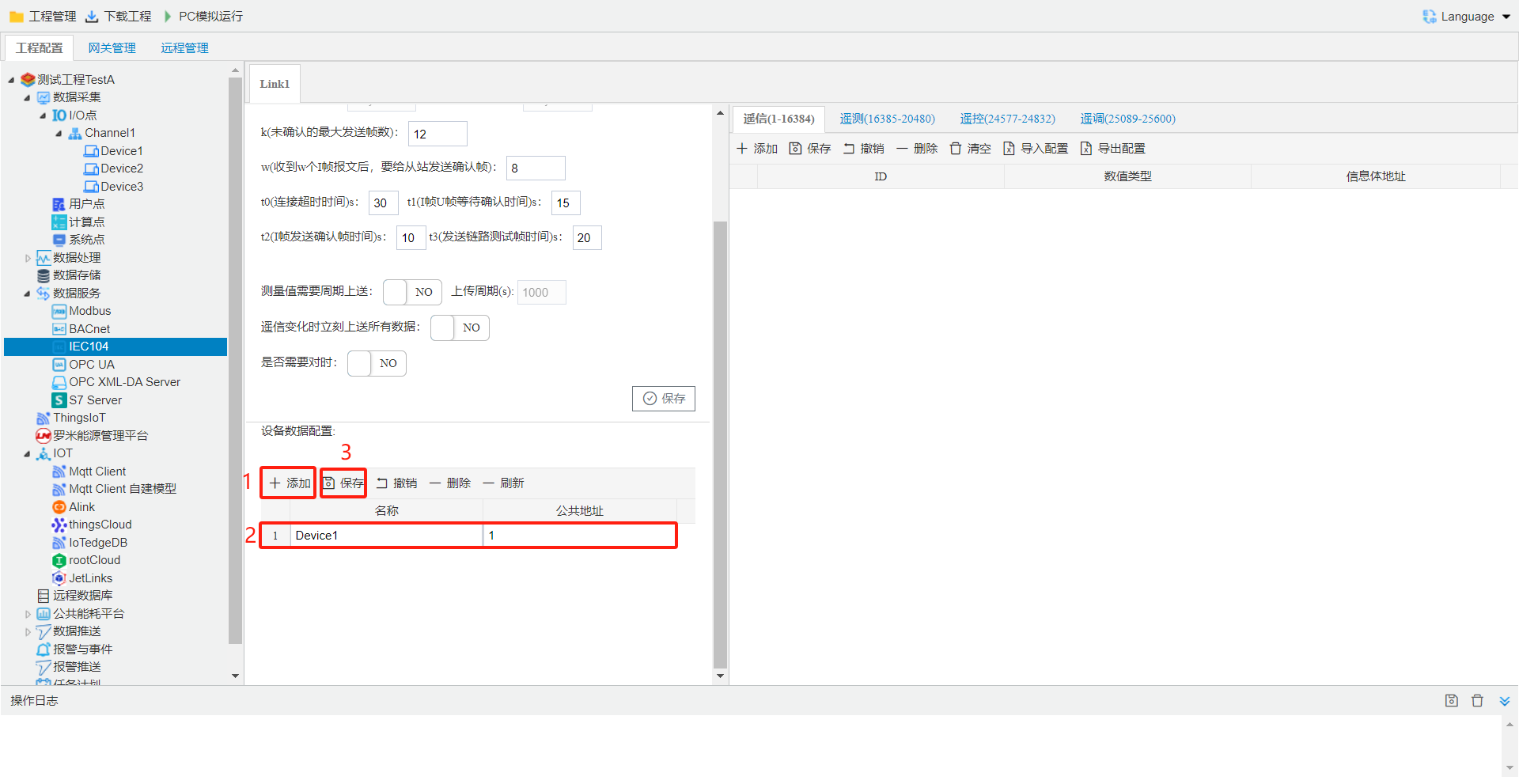

Figure 2 IEC104 serviceConfiguration adddata point(DI: , AI: , DO: , AO: ), as shown below:

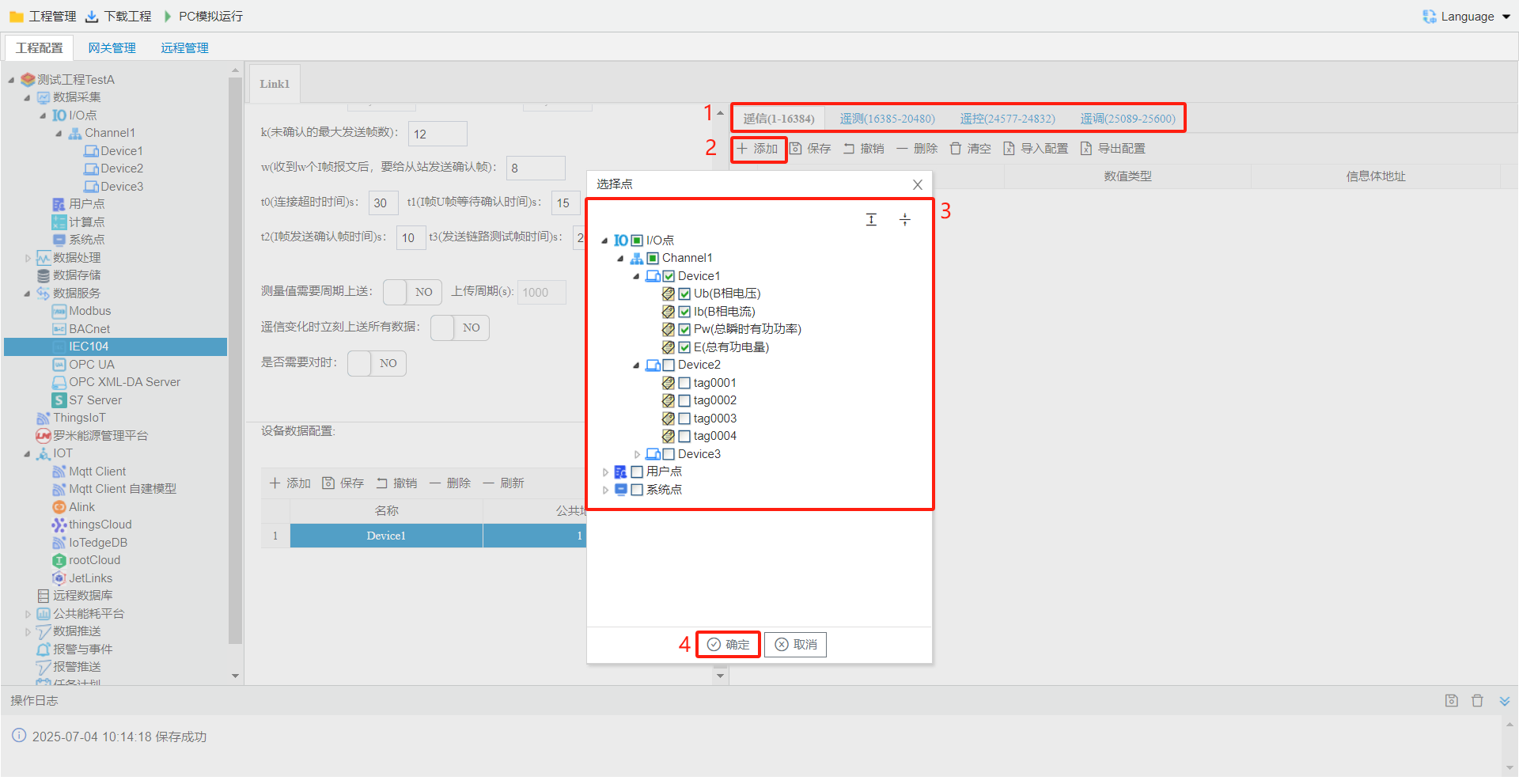

Figure 3 IEC 104 servicepoint

Tool Softwaretestgateway IEC 104 service​

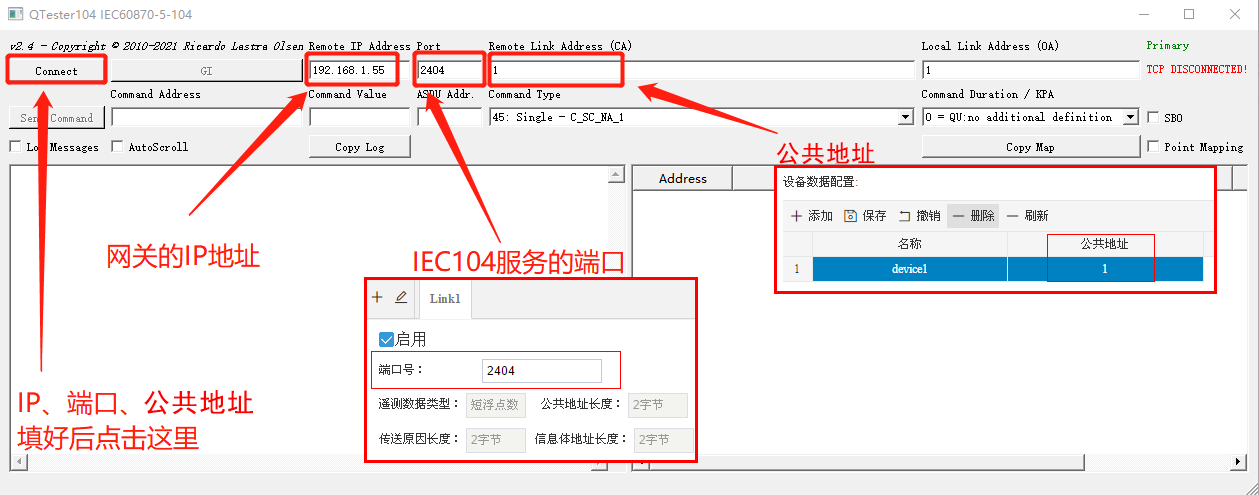

QTester 104testgateway IEC 104 service Example, stepsas follows: in QTester 104ongateway IP address, IEC 104 service Port numberanddevice Addressafter, Click Connectbutton.

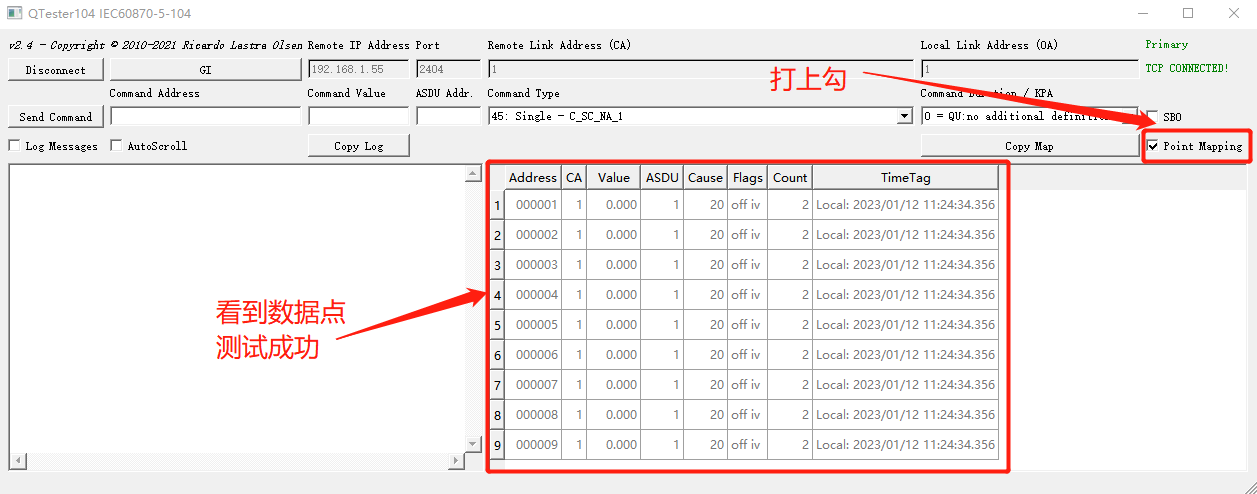

Figure 4 IEC104 servicetest1 convert/write Point Mapingselectonafter, candata point, gateway IEC 104 service.

Figure 5 IEC104 servicetest2
