2.12 JavaScript Script Editing

Function Overview

The IoT gateway supports JavaScript script editing, allowing users to implement flexible logic control and data processing through custom scripts. Users can write scripts based on business requirements and configure scripts to run at startup or on a schedule, meeting customization needs in complex scenarios. The built-in JavaScript editor provides a rich set of functions to help users develop scripts quickly.

Function Configuration

The procedure is as follows:

1. Click the Add button.
2. in add a unique JS name in the popup edit box, there are three execution modes: run at startup, loop and scheduled.

• run at startup: programstartwhenrun JS script;
• loop: according to Configuration execution interval(ms)loopJS script; (removed, please use Run at Startup with while(true))
• scheduled: execute the JS script at the specified daily time(when: minute: seconds)JS script;

3. Clickselectneed to run function;
4. Click the "Add" button, in popupinselectoneneed to reador Settings point;
5. Click the "Insert" button, create functionaddjsedit box cursorafter;
6. can3,4,5 stepsperformmultiplefunction add;
7. Click the "OK" buttoncompleteJS script edit.

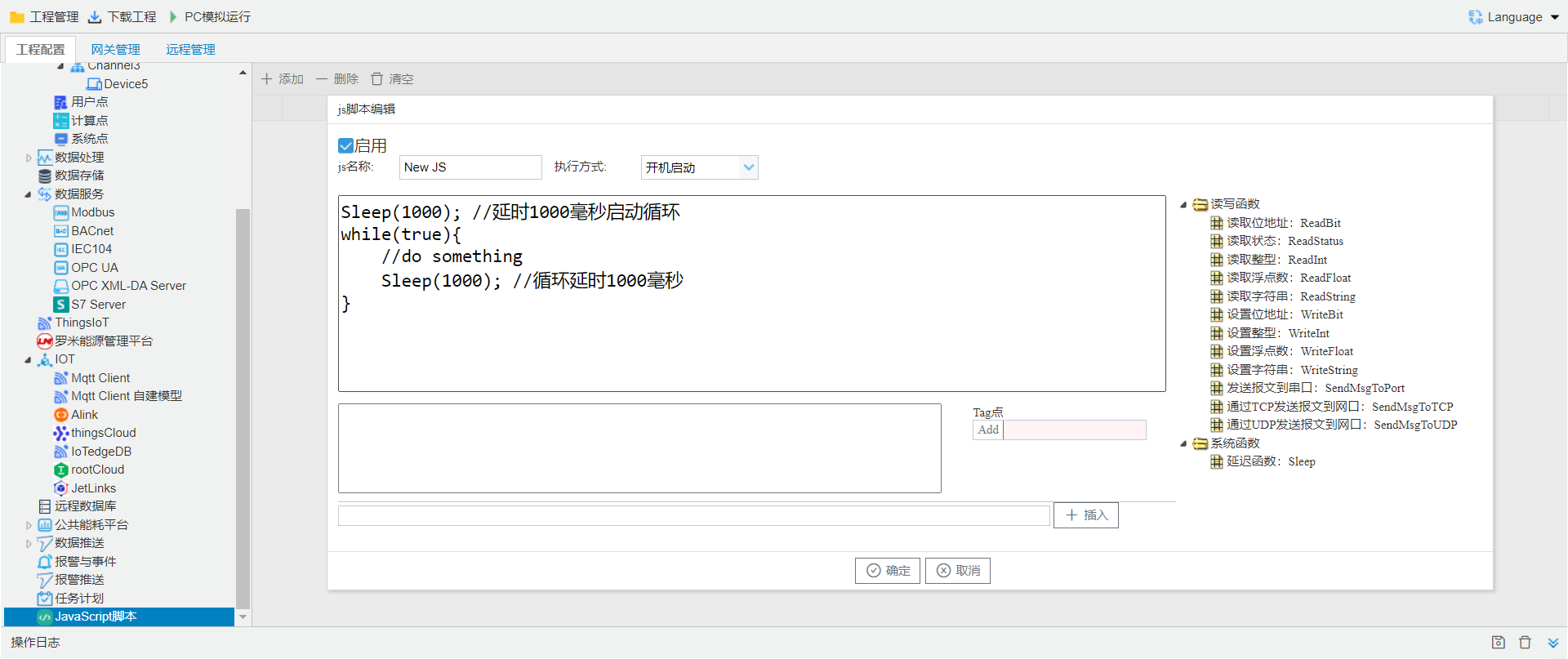

Figure 113 JavaScriptscript editor usercan in edit boxinby yourselfaddconforms toJS syntax script, such as while, if, else, etc..

Function Description

JS script editorbuilt-in Function Descriptionas follows:

read/write functions

ReadBit Function reads a Boolean value from the specified Tag point, the input parameter is the Tag point name string, if the point does not exist or the quality stamp is not Good, returns undefined.

Example: var tagValueBit = ReadBit('Device1.tag0001');

ReadStatus Function reads the status from the specified Tag point, the input parameter is the Tag point name string, the return value is Boolean, True indicates acquisition succeeded, False indicates acquisition failed, if the point does not exist or the quality stamp is not Good, returns undefined.

Example: var tagStatus = ReadStatus('Device1.tag0001');

ReadInt Function reads an integer from the specified Tag point, the input parameter is the Tag point name string, if the point does not exist or the quality stamp is not Good, returns undefined.

Example: var tagValueInt = ReadInt('Device1.tag0001');

ReadFloat Function reads a floating-point number from the specified Tag point, if the point does not exist or the quality stamp is not Good, returns undefined.

Example: var tagValueFloat = ReadFloat('Device1.tag0001');

WriteBit Function writes a Boolean value to the specified Tag point, the parameters in sequence are: Tag point Name(type: string), need to write Tag point value(type: Boolean), with no return value.

Example: var value = true;
WriteBit('Device1.tag0001'， value);

WriteInt Function writes an integer to the specified Tag point, the parameters in sequence are: Tag point Name(type: string), need to write Tag point value(type: integer), with no return value.

Example: var value = 10;
WriteInt('Device1.tag0001'， value);

WriteFloat Function writes a floating-point value to the specified Tag point, the parameters in sequence are: Tag point Name(type: string), need to write Tag point value(Typeisfloating-point), with no return value.

Example: var value = 1.23;
WriteFloat('Device1.tag0001'， value);

WriteString Function tospecified Tag pointwritestring, the parameters in sequence are: Tag point Name(type: string), need to write Tag point value(type: string), with no return value.

Example: var value = "String";
WriteString('Device1.tag0001'， value);

communication functions

SendMsgToPort Function tospecifiedserial portsendmessage, andreturnreceive message, the parameters in sequence are: serial port number, baud rate, data bits, stop bits, parity( 0:N, 1:O, 2:E), timeout(unitmilliseconds: 1000 milliseconds=1 seconds), send message, waitreceive number of bytes. returnvalueisstringtype.

Example:

while(true){                                                   // 1endless loop
  var A = [0x17, 0x03, 0x00, 0x00, 0x00, 0x04, 0x46, 0xff];  // messagecontent
  var rs = SendMsgToPort('com1',9600,8,1,0,2000,A,0);        // toserial portsendmessage
  // console.log(rs); //printreturnvalue
  if(rs){                                                    // determine whetherreturnvalueisis
    var str=rs.slice(7,8);                                 // according tomessage Descriptionextract
    // console.log(str); //printstr content
    reint = parseInt(str,16);                              // convert/writestringconvert toint 16
    WriteFloat('user.tag0001',reint);                      // convert/writevaluewritespecified user points
  }
  Sleep(1000);                                               // wait 1 secondsafteragainloop
}

SendMsgToTCP Function tospecified Ethernet portsendspecifiedmessage, andreturnreceive message. the parameters in sequence are: IP address, Port, timeout(unitmilliseconds: 1000 milliseconds=1 seconds), send message. returnvalueisstringtype.

Example:

while(true){                                                   // 1endless loop
  var A = [0x17, 0x03, 0x00, 0x00, 0x00, 0x04, 0x46, 0xff];  // messagecontent
  var rs = SendMsgToTCP('192.168.1.88',81,2000,A);           // to Ethernet portsendmessage
  // console.log(rs); //printreturnvalue
  if(rs){                                                    // determine whetherreturnvalueisis
    var str = rs.slice(7,8);                               // according tomessage Descriptionextract
    // console.log(str); //printstr content
    reint = parseInt(str,16);                              // convert/writestringconvert toint 16
    WriteFloat('user.tag0001',reint);                      // convert/writevaluewritespecified user points
  }
  Sleep(1000);                                               // wait 1 secondsafteragainloop
}

system functions

Sleep Function delayed execution, input Parametervalueismilliseconds, with no return value.

Example:

Sleep(1000);// delay and wait 1000 m S

Usage Example

run at startupExample

while (true) {
  var status;
  status = ReadStatus('system.TIME_SECOND');  // ReadStatus: readdata pointquality stamp
  console.log('system.TIME_SECOND status is ', status);
  if(status){ // ifthe point exists and the quality stamp is Good
    var curVal;
    curVal = ReadInt('system.TIME_SECOND'); // Read Int: fromspecifieddata pointreadinteger
    console.log('system.TIME_SECOND value is ', status);
    WriteInt('user.test',curVal); // Write Int: tospecifieddata pointwriteinteger
  }
  Sleep(1000); // sleep for 1 second
}

scheduledExample

var status;
status = ReadStatus('system.TIME_SECOND'); // ReadStatus: readdata pointquality stamp
console.log('system.TIME_SECOND status is ', status);
if(status){
  var curVal;
  curVal = ReadInt('system.TIME_SECOND'); // Read Int: fromspecifieddata pointreadinteger
  console.log('system.TIME_SECOND value is ', status);
  WriteInt('user.test',curVal); // Write Int: tospecifieddata pointwriteinteger
}

write JS scriptimplementgatewayscheduledrestart

Sleep(1000); // when 1000 millisecondsstartloop
var i = 0;
while(true){
  if(i==72) {
    Reboot();
  }
  i++;
  Sleep(1000*60*60); // loopwhen 1 when
}
