LMGateway414-OPC UA
OPC UA Gateway

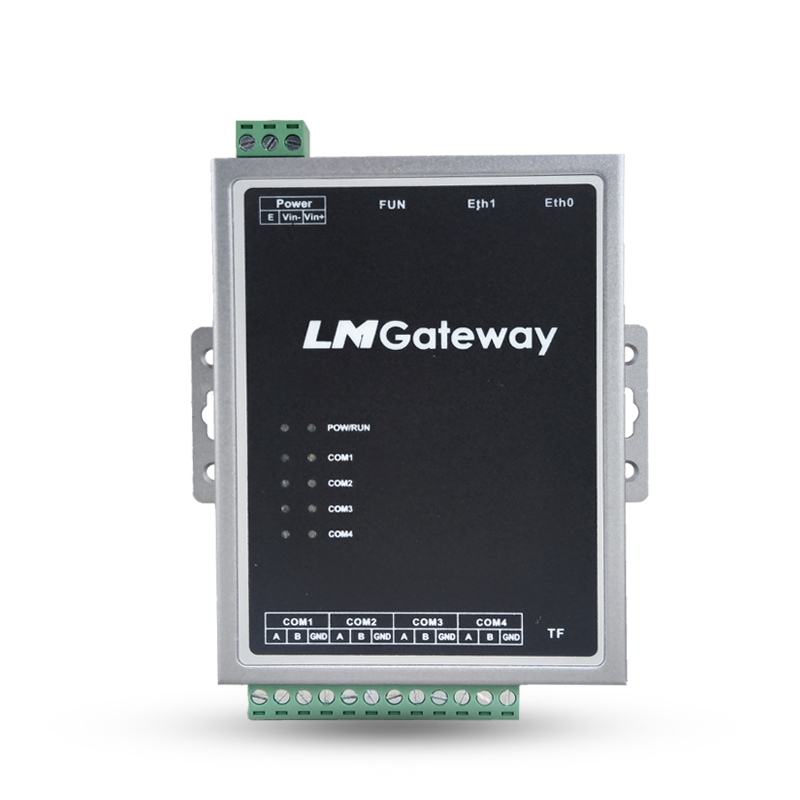

LM Gateway414-OPC UA protocol conversion gateway, based on a solid hardware platform design, a complete software kernel. Provides 4 RS-485 serial ports, 2 10/100 Mbps Ethernet ports, and the gateway embeds Modbus, BACnet, DLT645 and other data acquisition drivers to provide data to the upper computer in the way of OPC UA server.
Buy online
| CPU | 4 core A9, 1.4GHz |
| RAM | 512MB |
| Nand Flash | MLC eMMC 4GByte eMMC |

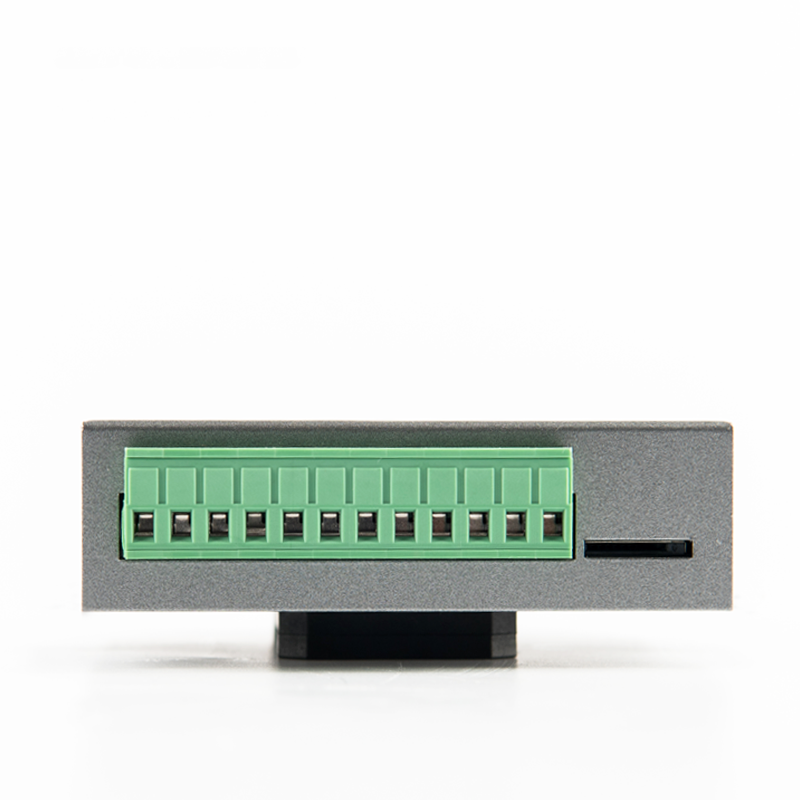

| Serial port | RS-485X4 |

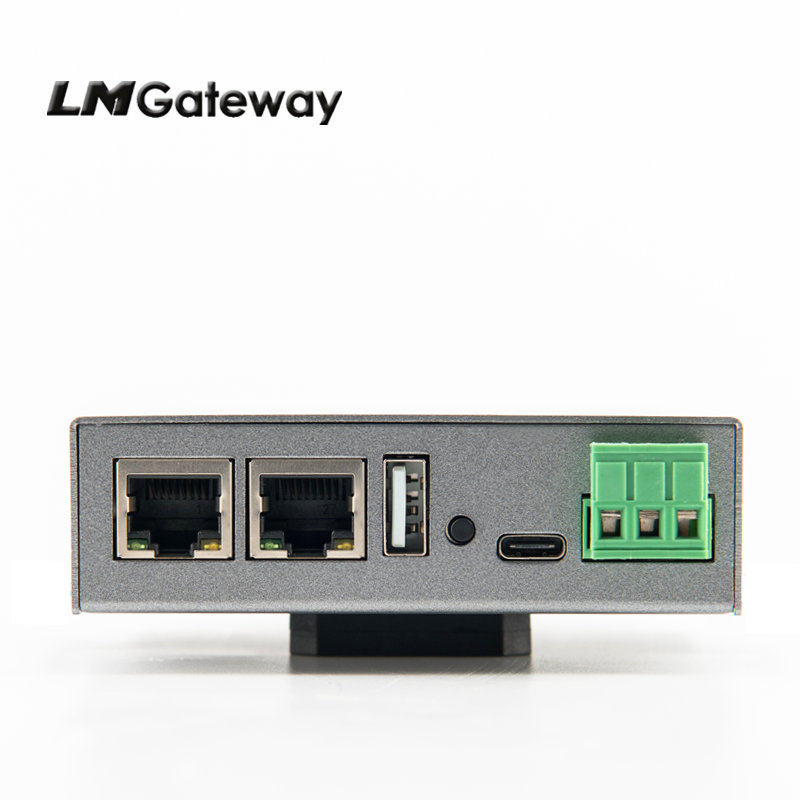

| Network port | 2 100M/10M Ethernet interfaces |
| Power | DC9V～36V |
| Total Weight | 230g |
| Enclosure rating | IP51 |
| Mechanical Dimensions | 135mm×85mm×29mm(L×W×H) |
| Mechanical installation | DIN rail card slot fixing |
| FUN | Long press to restore factory settings |
| Power Consumption | The maximum power consumption of the motherboard is ≤3W |
| Operating temperature | -30～70℃ |
| Working relative humidity | 20～90％non-condensing |
| Instrumentation | Data acquisition driver | Serial port | Network port |
| Modbus protocol | Modbus RTU | Modbus TCP, Modbus RTU_over_TCP | |
| DLT645 protocol | DLT645-1997, DLT645-2007 | / | |
| CJ188 protocol | CJ188 | / | |
| Mbus | MBus_EnergyMeter, MBus_EN1434 | / | |
| PLC | Mitsubishi Agreement | Mitsubishi Fx3U | / |
| Mitsubishi Fx485 | / | ||
| Mitsubishi_QBinary | / | ||
| Siemens protocol | Siemens S7-200 PPI | Siemens S7-200 Network | |
| / | Siemens S7-300 Network | ||
| / | Siemens S7-400 Network | ||
| / | Siemens S7-1200 Network | ||
| / | Siemens S7-1500 Network | ||
| AB | / | AB NET | |
| OMRON Protocol | OMRON_HOSTLINK | OMRON_FINS | |
| Building communication | BACnet protocol | BACnet MS/TP | BACnet IP |
| Industrial control and automation interface standards | OPC protocol | / | OPC UA, OPC DA, OPC XML DA |
| Substation communication standard | IEC protocol | / | IEC104 |
| Non-standard protocol | Instrumentation | Yiling temperature controller | / |
| dlt645 JX Digital | / | ||
| dlt645-2007 extended protocol | / | ||
| Jiangsu Runyi Water Meter | / | ||
| HL-MODBUS protocol | / | ||
| CJ/T133-2012 IC card water meter | / | ||
| DLT645-Fee Control | / | ||
| CJ/T133-2012 MBus IC card water meter | / | ||
| ModbusRTU_TancyA1 | / | ||
| Allen_Bradley_DF1 | / | ||
| modbus Shendong 43 | / | ||
| CJ188贵翔 | / | ||
| Beijing Mingcheng Zhonghui Sunshade Curtain | / | ||
| SGA400 | / | ||
| DEET-BUS | / | ||
| Internet interface | Internet collection | / | mqtt client subscription |
| / | Gold map weather forecast | ||
| / | Zhejiang Dahua HTTP | ||
| / | HTTP collection | ||
| / | Air Quality |
-

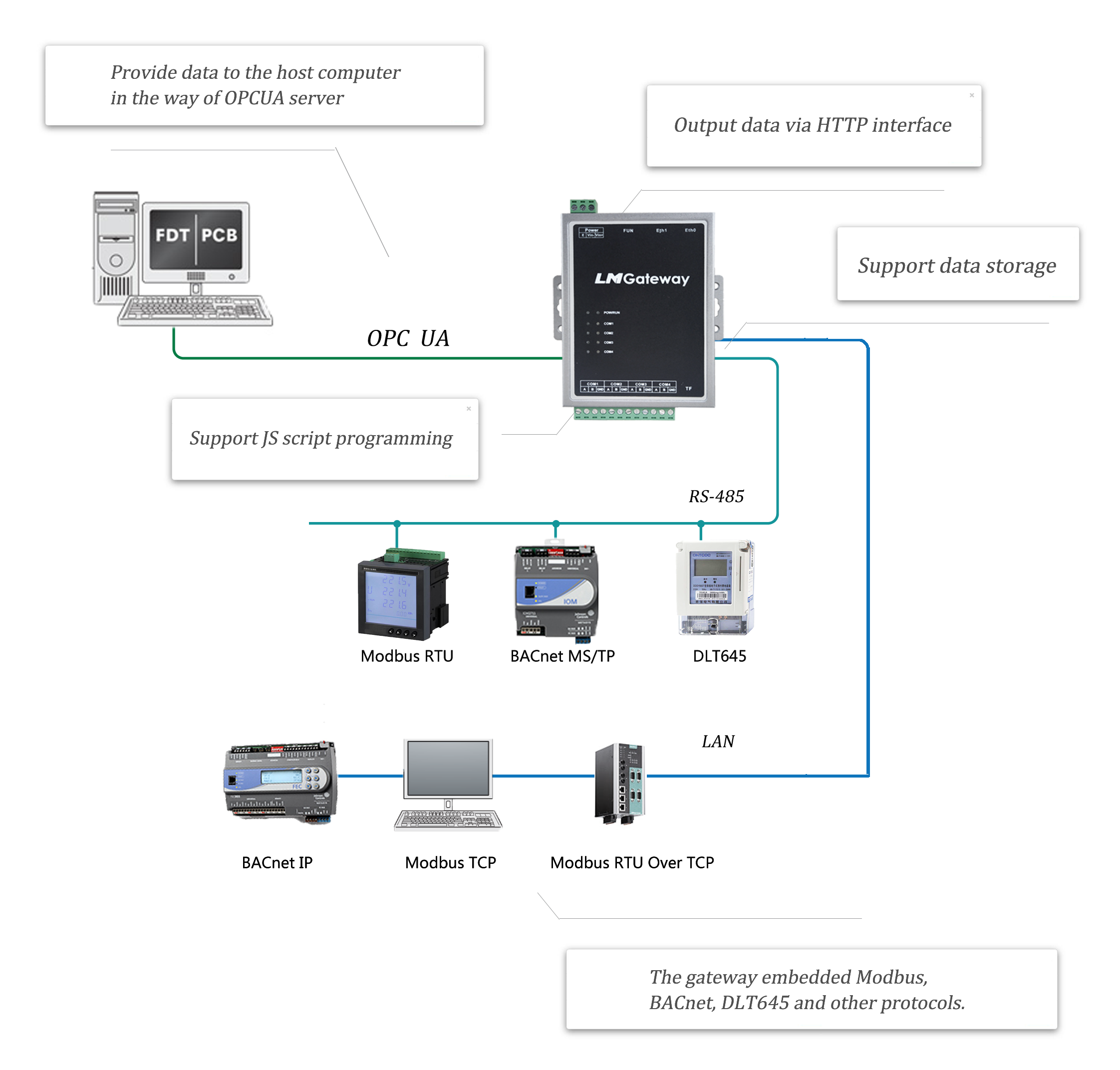

Provide data to the upper computer by way of OPC UA server.
The gateway provides an http server, which supports two common methods of GET and POST.
Users can take out the real-time data of the gateway through the http interface.
LM Gateway414-OPC UA Data Sheet
